SKU: JPW15653 MPN: 43434D

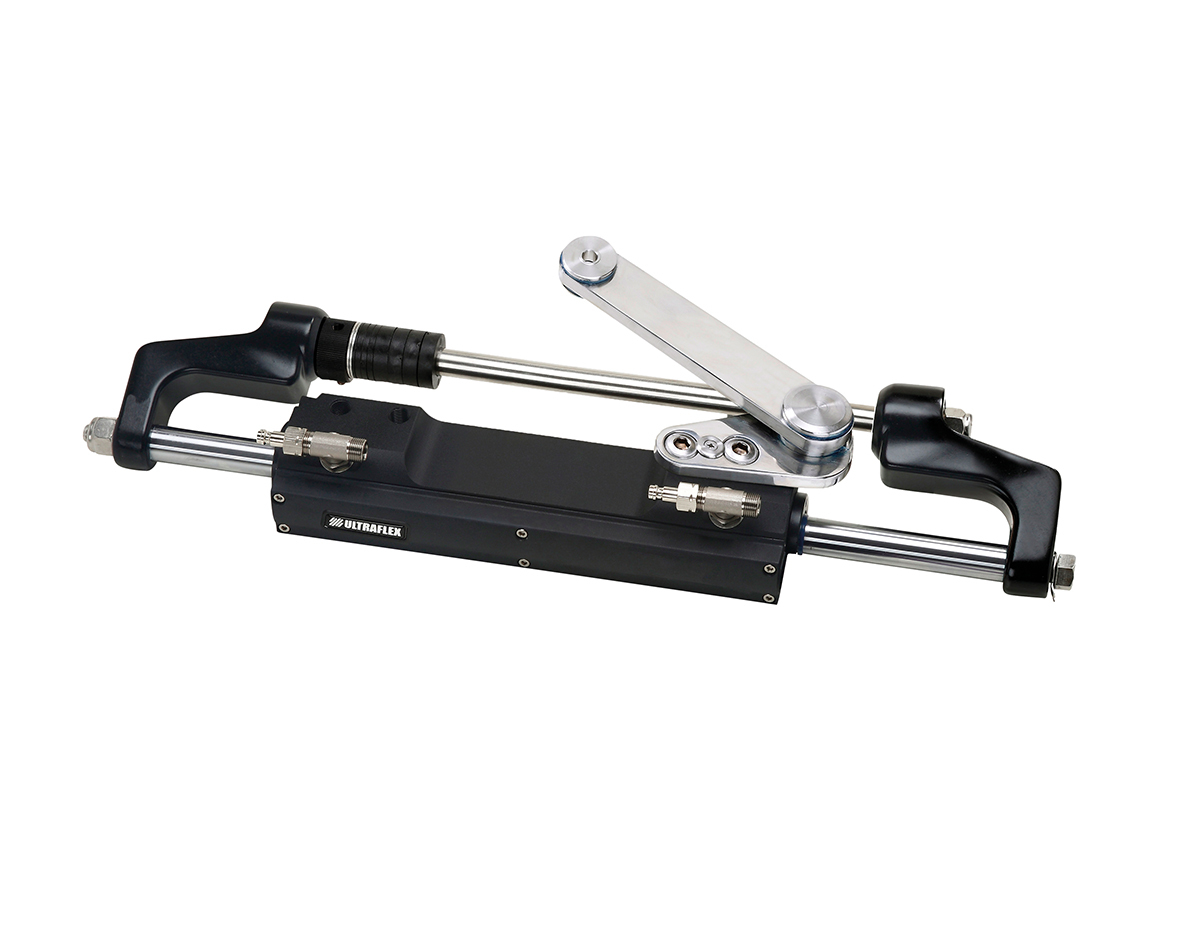

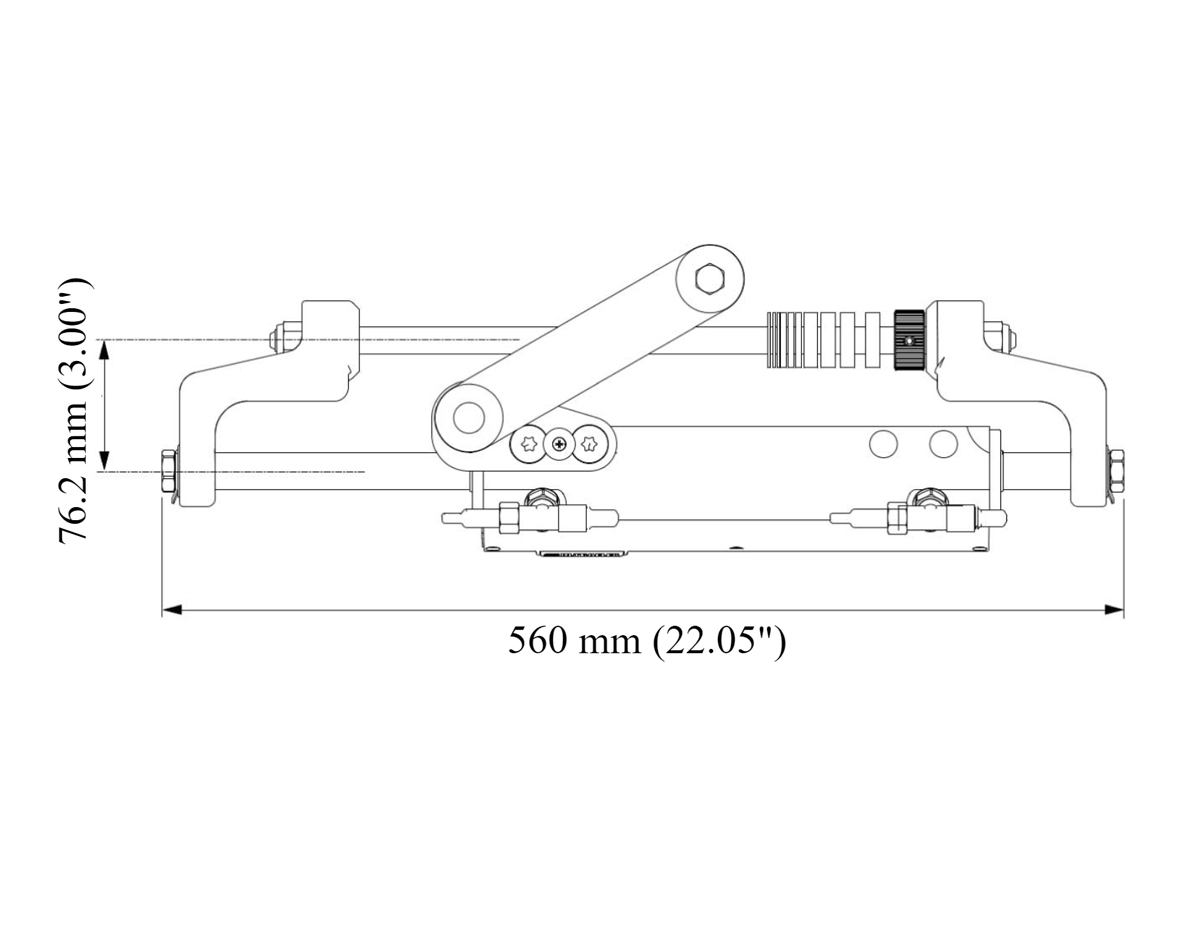

Heavy-duty port cylinder for two, three or four outboard engine applications with tie bar, built to be used as part of the Integra Electronic Steering Systems. The INTEGRA system essentially consists of one or more hydraulic cylinders equipped with electronic components controlled through a data network managed by a special power unit.
The cylinder is applied to the tilting tube of commercial engines. In fact, thanks to the use of two different link arms and a series of specially sized spacers, it is possible to adapt the cylinder to any type of installation.
For applications with several engines, the cylinder must be fitted with a coupling bar. The UC120E-OBF [JPW15651] cylinder is equipped with an integrated position sensor which allows the cylinder position to be constantly communicated. The UC120P-OBF cylinder has the same characteristics as the E version but it does not have a position sensor. this model can be used, always in combination with an E version cylinder, for all configurations with several engines.
See engine application guide below (these recommendations should be used as a general reference only).

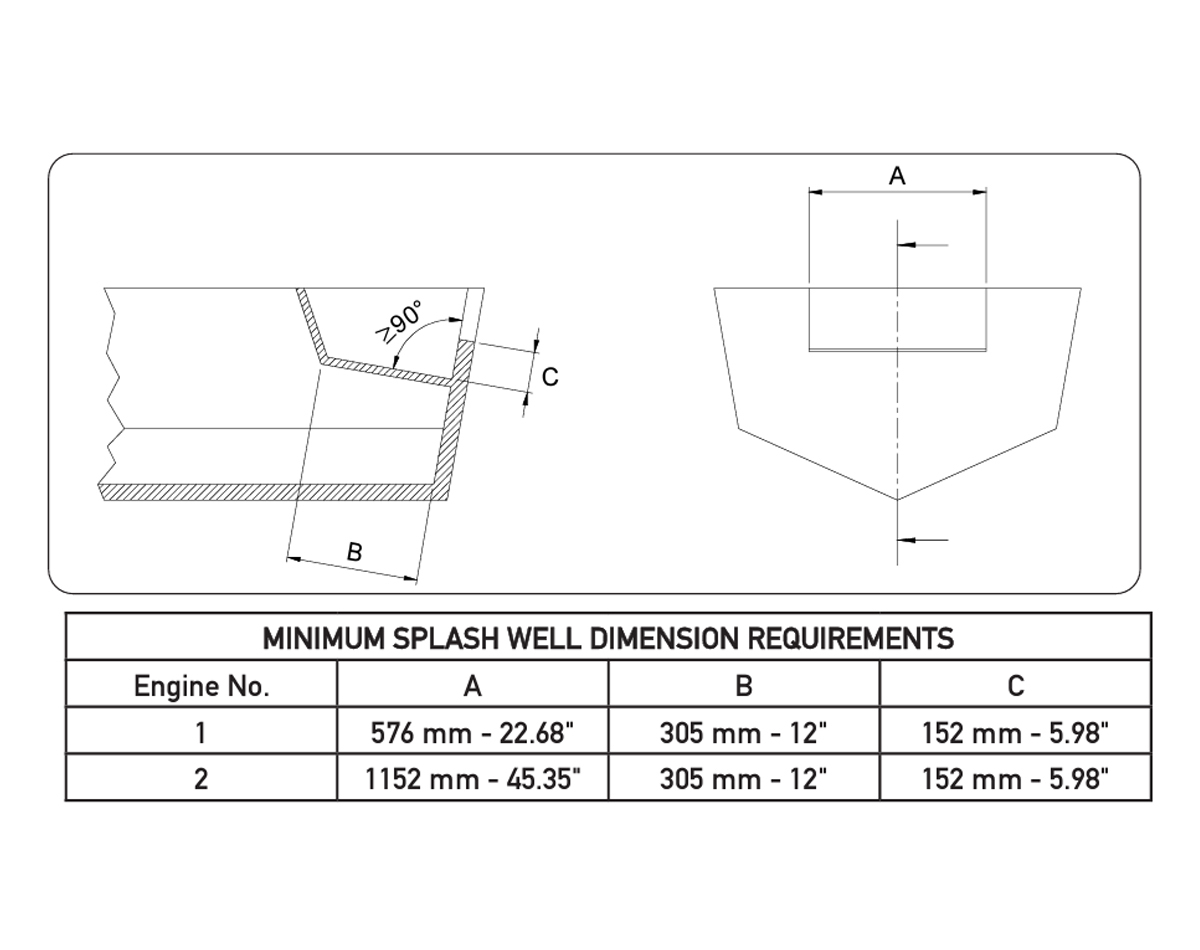

Volume | 120 cc - 7.5 cu. in |
---|---|
Output Force | 800 kg - 1764 lbs |
Inside Diameter | 36.5 mm - 1.44” |
Stroke | 184 mm - 7.24” |
Oil | OL460 |
Splashwell Dimension Requirements | |||
---|---|---|---|
No. Of Engines | A (mm) | B (mm) | C (mm) |
1 | 560 | 152 | 152 |
2 * | 1110 | 152 | 152 |
*Note: For twin engine applications, the minimum distance between the two engine centers is 650mm
Note: These recommendations should be used as a general reference only.
JPW SKU | Kit | Cylinder |
---|---|---|
JPW15651 | 1 | UC120E-OBF/1 |
(available upon request) | 2 | UC120E-OBF/2 |
Engine | Power | Year | Kit |
---|---|---|---|
Mercury® Mariner® |
115-125-150 EFI 2S 225-250 EFI 2S 135-150-175 OPTIMAX 200-225-250 OPTIMAX RACING 300 OPTIMAX 250 SALTWATER EFI 4S 135-150-175-200 VERADO L4 FOURSTROKE 175-200 V6 FOURSTROKE 225-300 V8 |
1990-2007 2000-2007 1999-2018 1999-2018 1999-2011 2007-2011 2004-2012 2018-to date 2018-to date |
1 1 1 1 1 1 1 1 1 |
Evinrude® | E115-E130-E135 2S V4 E150-E175-E200-E225-E250-E300 2S V6 |
1995-to date 1995-to date |
2 2 |
Yamaha® | 150F-200F-250G 2S 150 HPDI VMAX 2S 175-200-225-250-300 HPDI VMAX 2S F115-F150 EFI 4S F200-F225-F250 4S F115-F150-F175-F200 L4 F200-F225-F250-F300 V6 4S F350 4S V8 |
1990-2008 1996-2007 2000-2008 2000-2008 1999-2007 2002-2007 2004-to date 2006-to date |
2 2 2 1 2 1 2 1 |
Honda® | BF135-BF150 4S BF150 V-TEC 4S BF175-BF200-BF225- BF250 4S |
2005-to date 2008-to date 2001-to date |
1 1 1 |
Suzuki® | DF100-115-140 4S DF150-175-DF200 L4 4S DF200-DF225-DF250-DF300-DF350 V6 4S |
2008-to date 2006-to date 2004-to date |
1 1 2 |
Tohatsu® | 115-120-140 2S 70-90-115 TLDI 4S BFT 115-150-200-225-250 4S BFT60-75-90 |
2004-to date 2004-to date 2014-to date 2015-to date |
2 1 1 1 |
Selve® | 80 PORTOFINO/TIGERSHARK 2S 150 WHITE SHARK 2S 100EFI MARLIN -115 EFI NARWHAL 225 BEAKED WHALE 4S 150EFI KILLER WHALE 4S - 200 SEI WHALE 4S |
1995-2008 2001-2007 2000-to date 2019-to date 2000-to date |
1 2 1 2 1 |
Johnson® | BJ90-115-140 4S J90-115 V4 2S J150-175 V6 2S J200-225 V6 4S |
2001-2007 1995-2007 1995-2007 2004-2007 |
1 2 2 2 |
OXE® | 125-150-175-200HP DIESEL 300HP DIESEL |
2018-to date 2020-to date |
1 1 |
COX® | 300HP | 2020-to date | 2 |
