This range of cabling solutions eliminates time-consuming, sub-standard routing of cables and messy sealant to achieve a 100% watertight installation for your marine cables every time.
This range of cabling solutions eliminates time-consuming, sub-standard routing of cables and messy sealant to achieve a 100% watertight installation for your marine cables every time.
This range of cabling solutions eliminates time-consuming, sub-standard routing of cables and messy sealant to achieve a 100% watertight installation for your marine cables every time.
Each unit supplied with both pre-drilled inner seals to suit specific sized cables, and blank bungs so you can cut them to fit your cable perfectly, creating the watertight seal. Simply select the unit that is large enough for your connector/plug to fit through.
Captive nuts make for easy assembly and also allow reliable repeat installations.
The aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield.

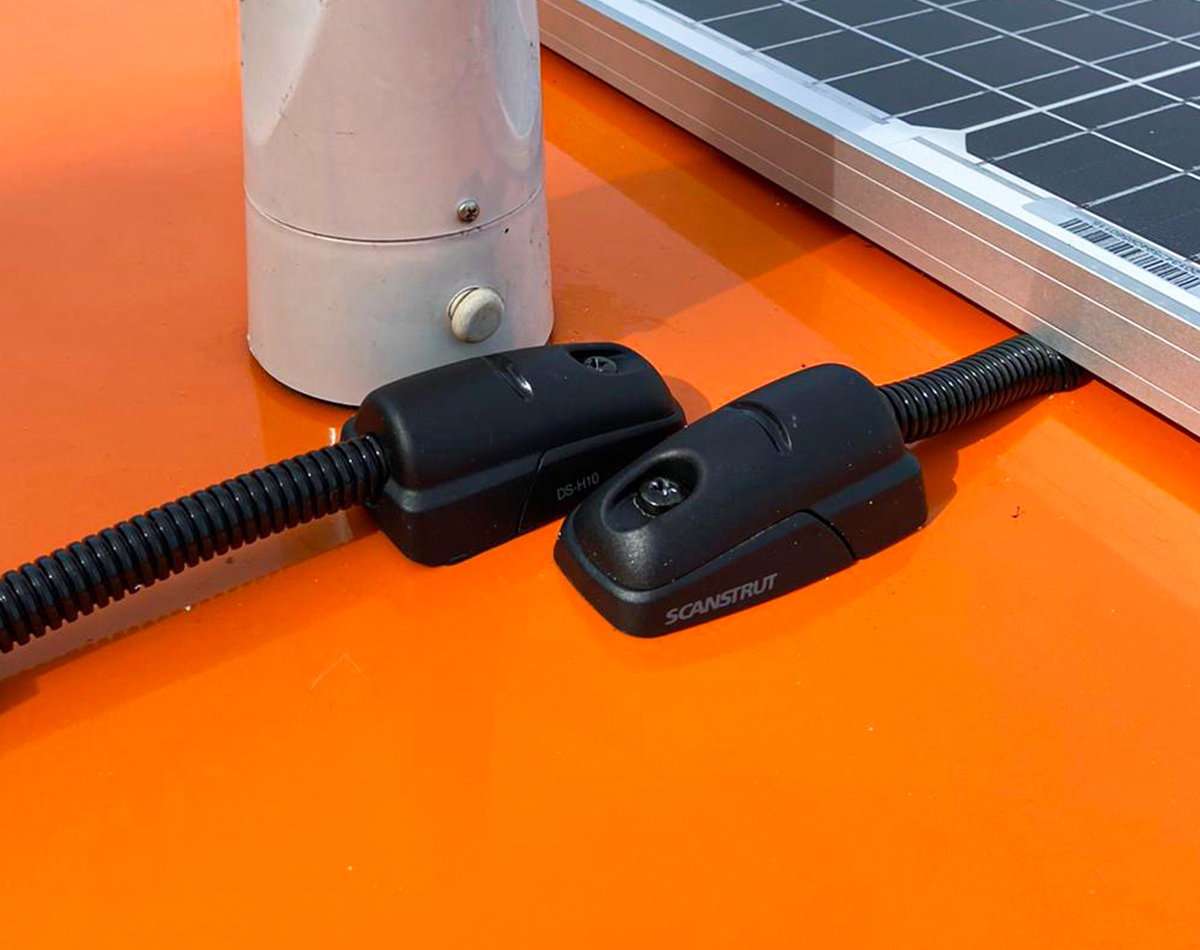

These solutions are the only guaranteed and proven watertight installation for your antenna, lights, solar panel or other rooftop electrionic cables.
Features:
See related products for other vertical or horizontal cable seals.

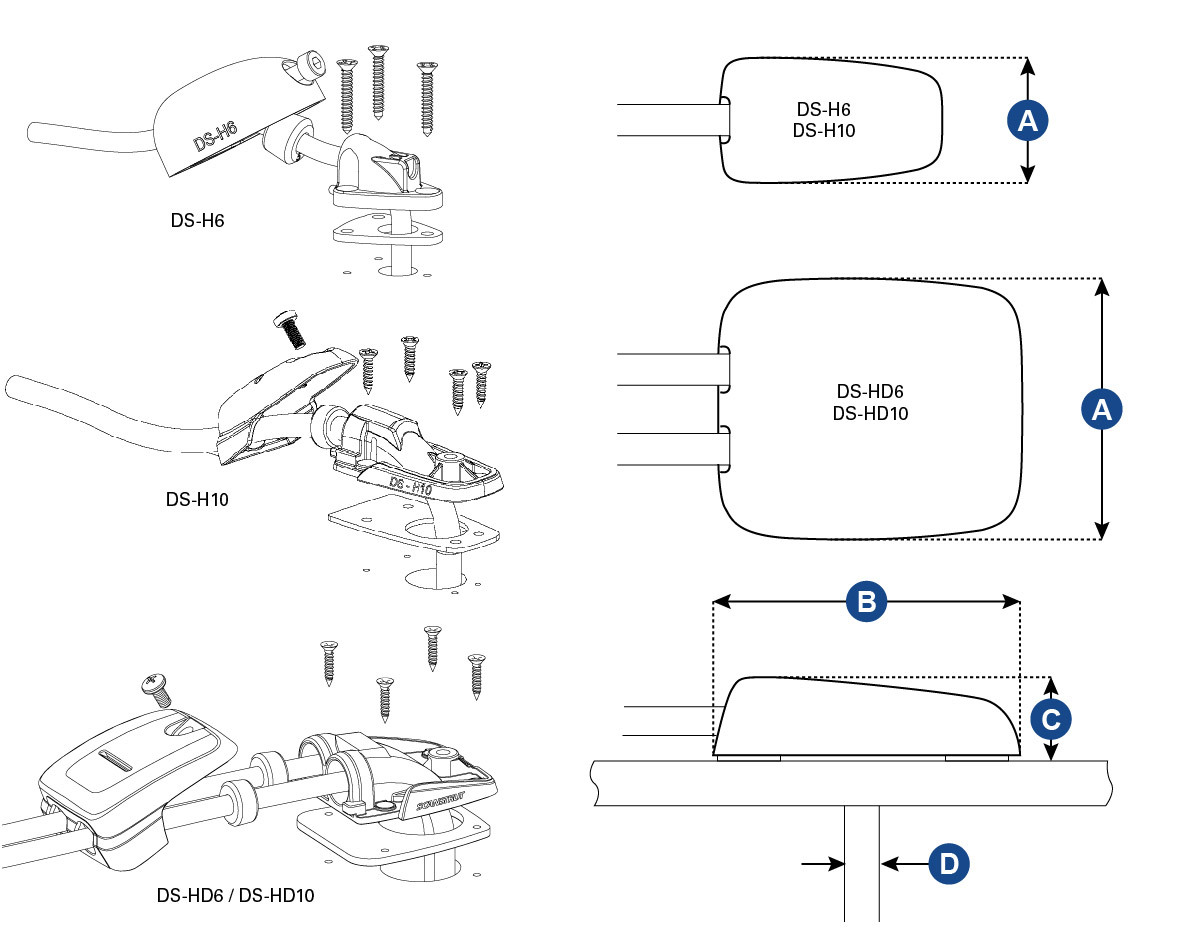

JPW SKU | Model | Cable Type | Cable Size | Dimensions (mm) | |||
---|---|---|---|---|---|---|---|
A | B | C | D | ||||
JPW10432 | DS-H6 | Single | 2 - 6mm | 28.5 | 46 | 20 | 2-6 |
JPW10433 | DS-HD6 | Double | 2x 5 or 6mm | 54 | 63 | 22 | 5-6 |
JPW10429 | DS-H10 | Single | 6 - 10mm | 44.5 | 77.5 | 27 | 6-10 |
JPW10430 | DS-HD10 | Double | 2x 6, 7, 8, 9 or 10mm | 66.5 | 75.1 | 28.5 | 6-10 |
$139.12 (inc. GST)
Scanstrut Watertight Multiple Horizontal Entry Cable Seal JPW10436 DS-H-MULTI-BLK
