SKU: QFGBT30250240A00 MPN: FGBT30250240A00

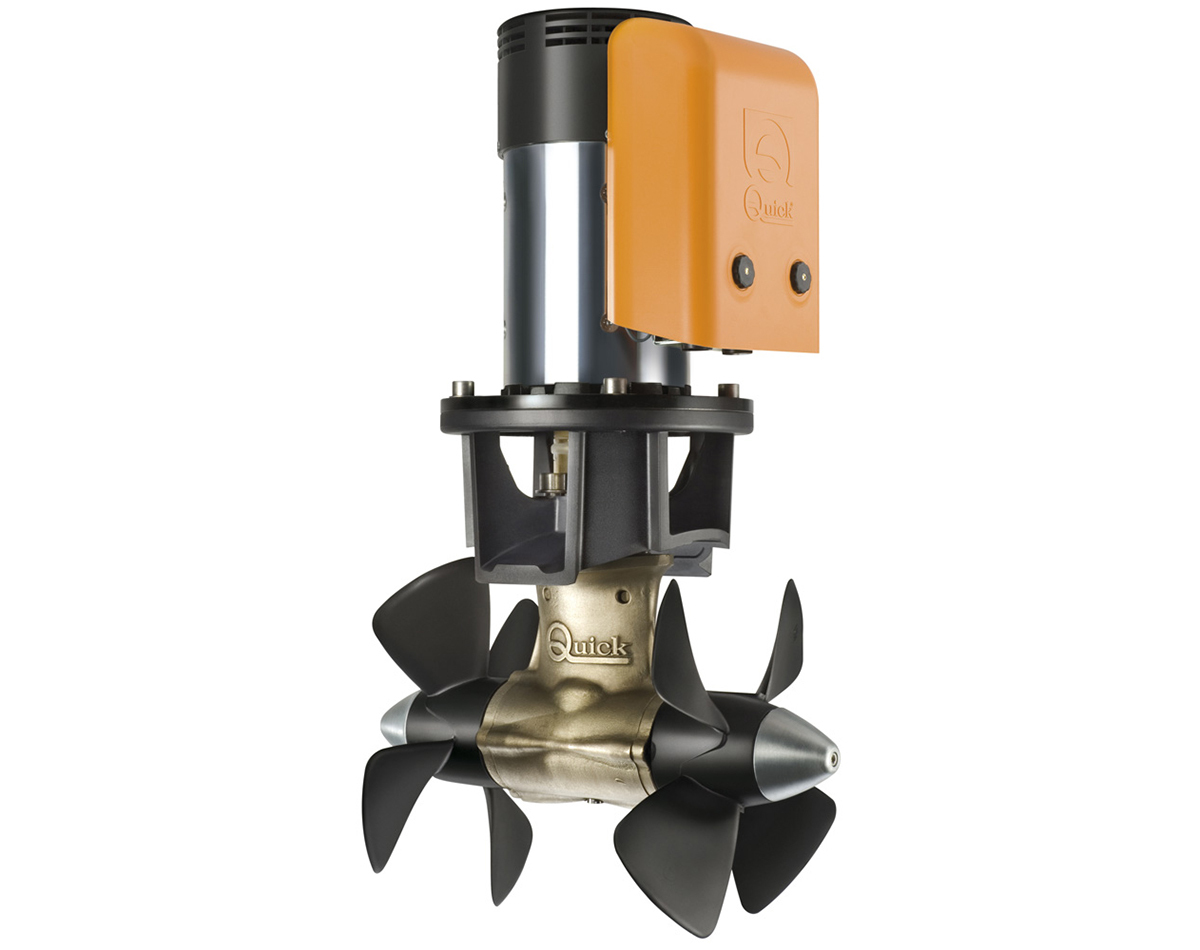

This Quick BTQ300 thruster can be used on either bow or stern, and has an electric DC motor with double propellers. Available in 24V, with 10kW power and 250Kgf, it requires a tunnel diameter of 300mm (11.8 inches).
For the thruster to operate, you must also purchase a controller, control cable, fuse, fuse holder and bow or stern tunnel. A second controller, control cable extension lead & a splitter are also required for dual-station installations.
Oversize Product
The superior quality of Quick thrusters is acknowledged by the best boatbuilders worldwide. Designed and manufactured in Quick Nautical Equipment premises, this Quick BTQ300 thruster boasts the 'Made-in-Italy' prestige in every component.

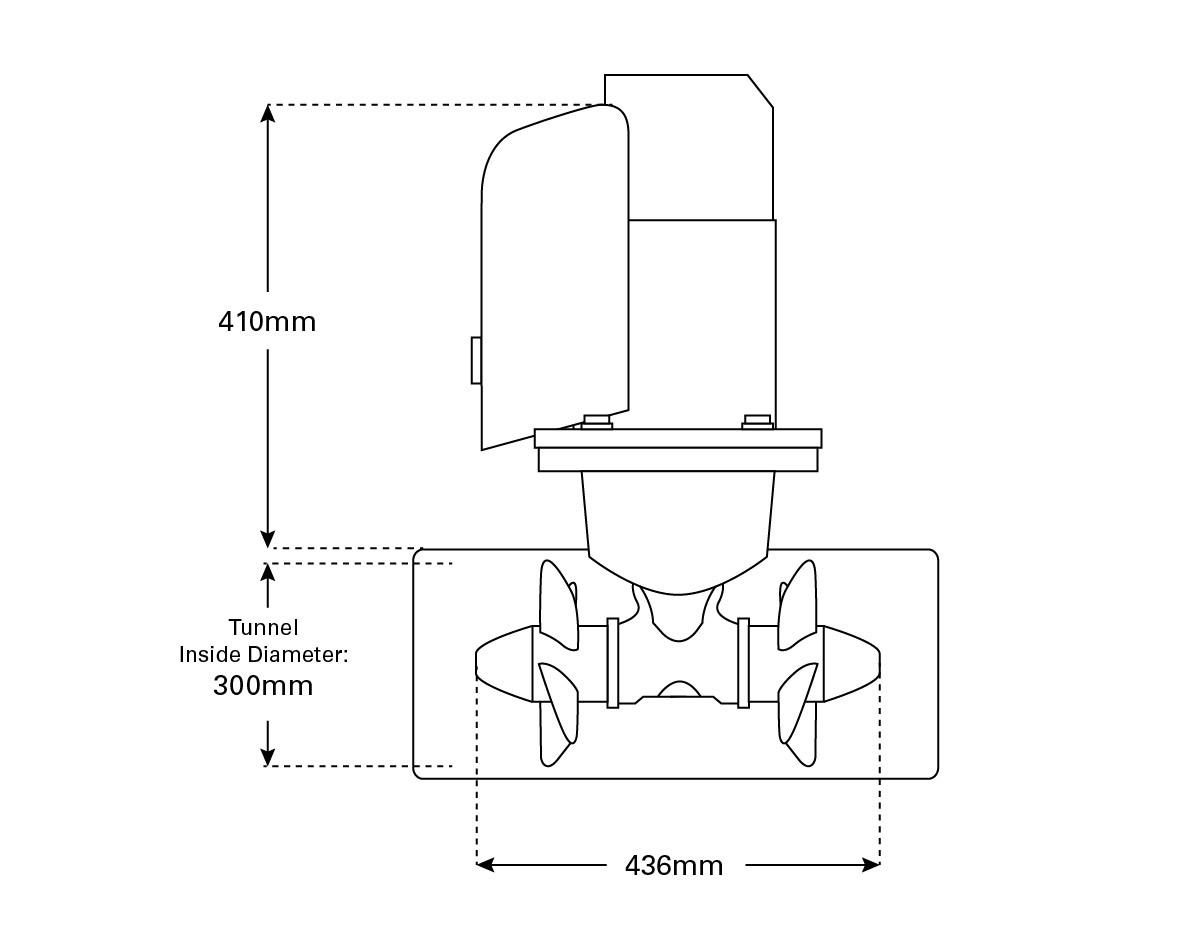

It can be installed on either bow or stern, and has an electric DC motor with double propellers. Delivering 10kW motor power with 250Kgf, this thruster requires a tunnel diameter of 300mm (11.8 inches).
Supplied with:
Features:

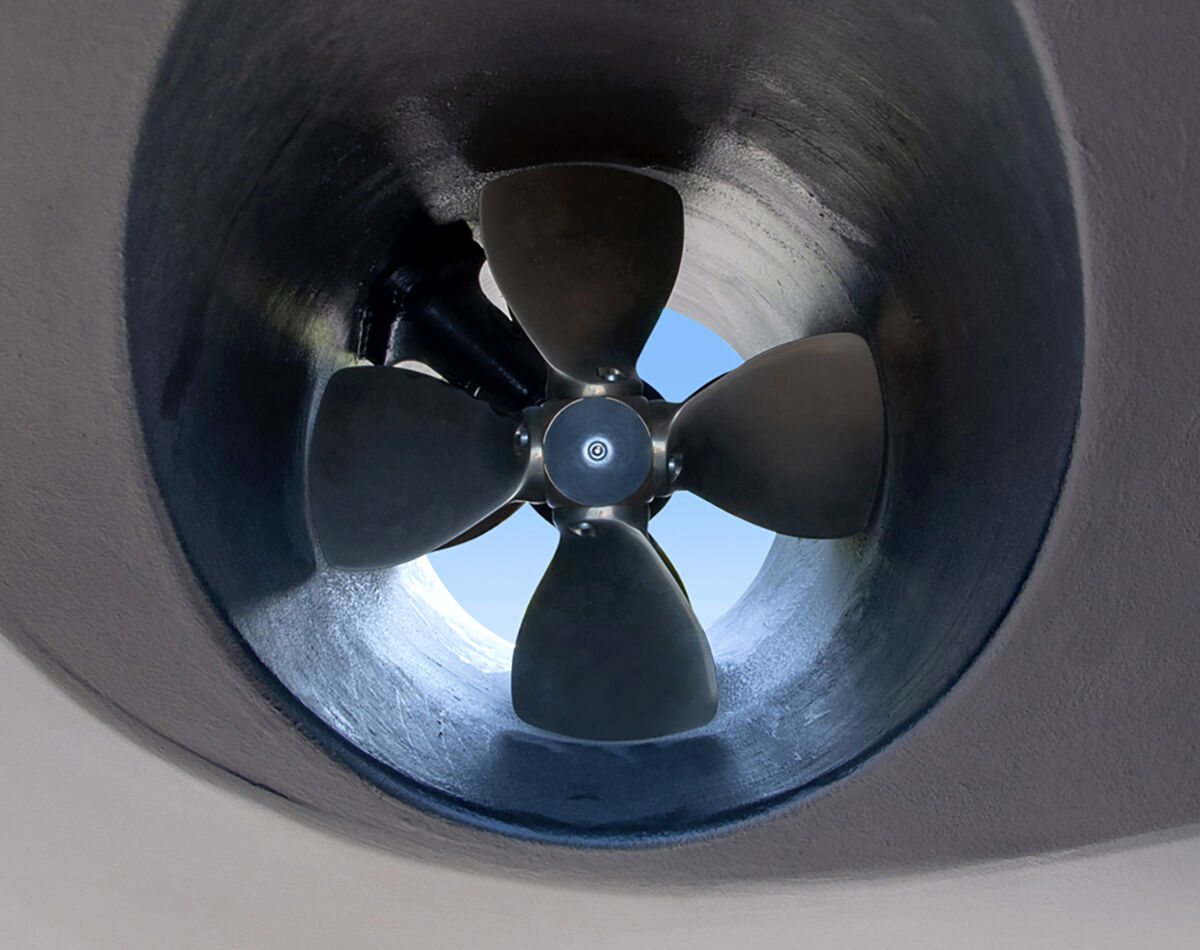

Tunnel thrusters are the most common type of thrusters. The tunnel is installed through either the bow or the stern, and below the waterline. The tunnel protects the propulsion unit and concentrates the propeller’s thrust. All Quick thrusters can be installed both on both bow and stern thanks to the suitable tunnels which allow the two different installations.
Better performances, lower absorption
The 4-blade propellers guarantee maximum thrust performance and reduction in current absorption. They are made of composite materials, resistant in every condition. The counter-rotating system offers better thrust performances. The two propellers have each been designed to suit left side and right side, to guarantee the same upper performances in both directions.
The gearbox has been designed so that the behaviour of the propeller is unaffected in either direction. The bronze propeller gear leg is provided with a hydrodynamic profile that minimizes turbulence.
Maintenance is not required since the special highly-resistant components guarantee a perfect lubrication seal for life. The anodic aluminium protection is easily replaceable. In case of total corrosion of the anode, the propeller doesn’t get lost because it’s fixed directly to the pod, independently from the anode.
The elastic joint that optimizes the alignment between motor and gearbox is an exclusive Quick design. This acts as an even-tension device, preserving the operating system from impulses from the bow thruster, with above-average results.
JPW SKU | Volt | Motor Power | Fuse Size | Thrust | Boat Size | Weight |
---|---|---|---|---|---|---|
QFGBT30250240A00 | 24V | 10kW | 400A | 250kgf | 20 - 26m | 46.7kg |
Please note that in order for the thruster to operate, you must also purchase separately:
Single Station
Dual-Station (e.g. a vessel with a flybridge)
All items for a single station, with the addition of:
If you have a large vessel and need to walk around it to get a better view of the dock whilst mooring, you may also wish to purchase a hand-held remote control in addition to the main, fixed thruster control:
