SKU: N93750BL2 MPN: 93750BL2
Designed from the ground up, the Model 37 trailer lamp has been engineered for use on boat trailers where regular submersion is common. Suitable for trailers up to 7mtrs or 22 feet in length.
The complete 'Plug and Play' wiring harness is quick and easy to connect with no additional wiring required, making it perfect for DIY installation.
Designed from the ground up, the Model 37 trailer lamp has been engineered for use on boat trailers where regular submersion is common. The lamps are protected from water ingress with a two-stage system that incorporates ultrasonic welding and a two-part epoxy glue.

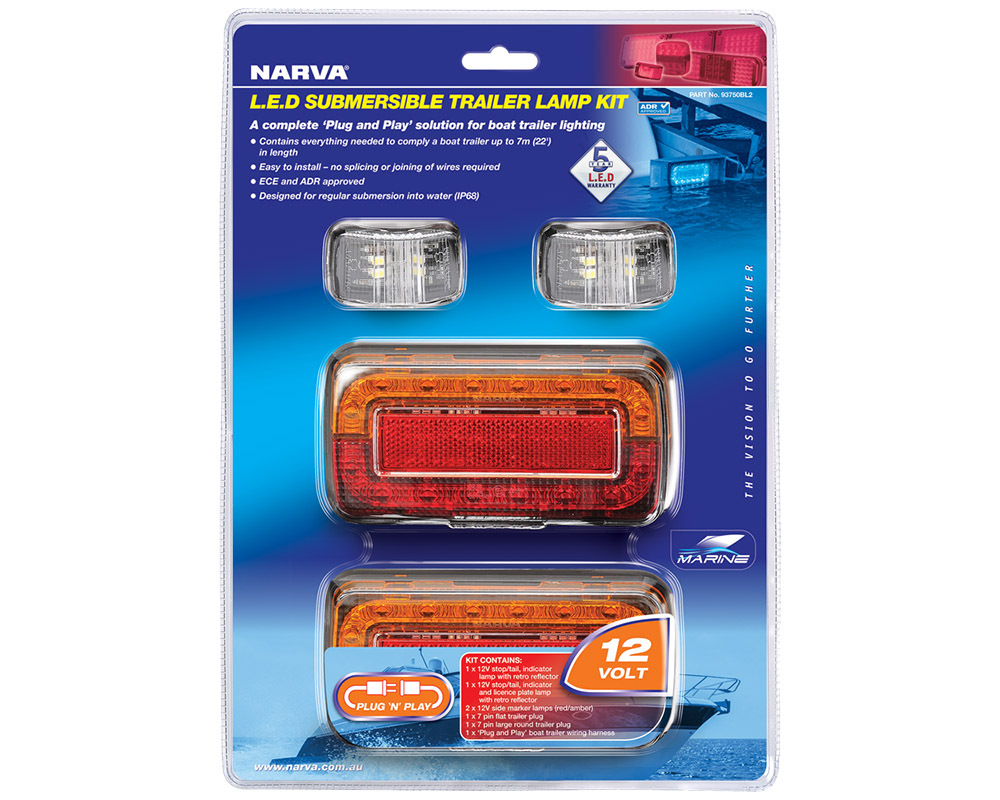

The 'Plug and Play' kit contains two rear combination lamps (one with inbuilt licence plate lamp), two red/amber side marker lamps, main harnesses and two popular trailer plugs (7 pin flat and 7 pin large round trailer plugs) to suit the most common sockets fitted to vehicles.
Each kit contains all the necessary lamps to comply a standard boat trailer to the Australian Design Regulations (ADR 13/00) for lighting installations.

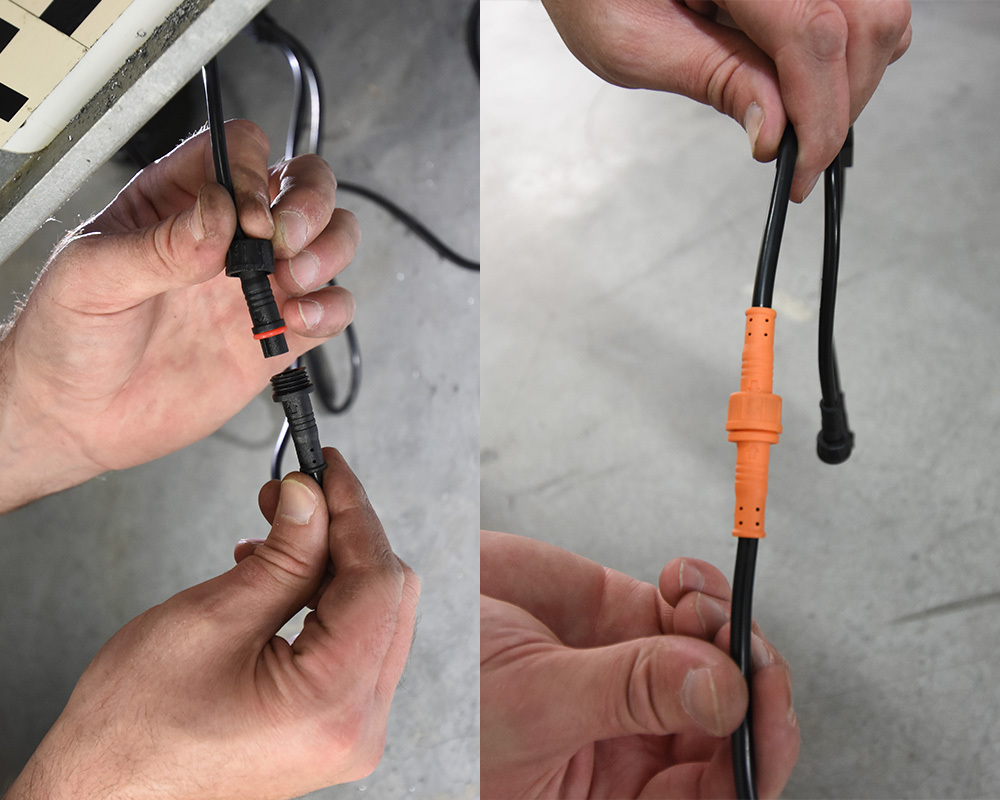

Waterproof connection system utilises over-moulded connectors that quickly join the lamps and trailer plug to the main wiring harness. No splicing or joining of wires is required, making connections a tool free operation. Requires a 17mm cut-out hole for mounting and feeding wires through.
Kit Includes:
Input Voltage Range | 12V |
---|---|
Current Draw | 0.13A at 12V (Indicator/Stop) 0.03A at 12V (Tail) 0.08A at 12V (Licence Plate) 0.04A at 12V (Marker Lamps) |
LP Rating | IP66 and IP68 |
Size | 80mm (W) x 150mm (L) x 28mm (H) |
Cutout: | ø 17mm (for waterproof connectors) |
ADR | 6/00 (cat 2a), 45/00, 47/00, 48/00, 49/00 |
