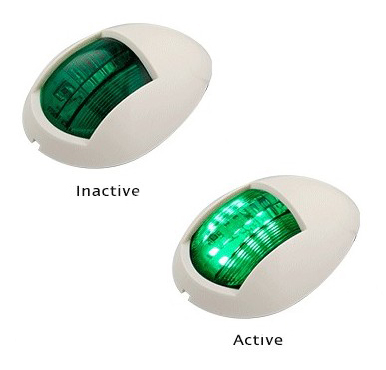

The sleek waterproof 52 series navigational lights provide an angled beam from 10 high powered LED's and have a removable backing plate to hide the mounting screws within a slimline design.
The sleek waterproof 52 series navigational lights provide an angled beam from 10 high powered LED's and have a removable backing plate to hide the mounting screws within a slimline design.
The sleek waterproof 52 series navigational light provides an angled beam from 10 high powered LED's and has a removable backing plate to hide the mounting screws within a slimline design.
A fully sealed unit that is unaffected against water and salt spray, this light has a small profile so you will have no trouble finding the correct mounting position on your boat with the peace of mind that they will be protected from rain or rough seas.
The LED Autolamps Series 52 Navigational Lights feature a pre-wired 180mm cable and include mounting screws for easy installation.
Fitting Instructions: Remove back plate with small screw driver and fix at two screw points with screws supplied, clip lamp and housing in place.
Features:
Port | Starboard | Stern | |
Size | 76mm x 52mm x 25mm | 76mm x 52mm x 25mm | 76mm x 52mm x 24mm |
Beam Angle | 112.5° | 112.5° | 135° |
Current Draw | 0.08A @ 13.8V 0.18A @ 28V |
0.12A @ 13.8V 0.20A @ 28V |
0.18A @ 13.8V 0.10A @ 28V |
Light Colour | Red | Green | White |
Voltage | 12-24V | ||
LED's | 10 | ||
Cable | 180mm pre-wired | ||
IP Rating | IP67 - Dust tight and protected against the events of temporary submersion | ||
Certifications | ATAC Compliant | ||
Warranty | 5 Years | ||
Housing Colour | White |
