Exploded Diagram
This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
See product overview tab for table with links.
This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
Click on the JPW part numbers below to be directed to the product listing on our website for stock availability, pricing and to order online.
Some items are also included in the "Repair Kits" which are listed further below.
Note: If the item you need has no JPW part number, please contact us so we can confirm if we can bring it in specially for you.
| Item | Part No | Jabsco Code | Description |
|---|---|---|---|
| 1 | J15-220 | 29096-1000 | Bowl (Standard Compact) |
| 1 | J15-221 | 29126-1000 | Bowl (Large) |
| 2 | J15-225 | 29097-1000 | Seat, Lid & Hinges (Standard Compact) |
| 2 | J15-226 | 29127-1000 | Seat Lid & Hinges (Large - pre 2018) |
| 2 | 58104-1000 | Seat Lid & Hinges (Large - 2018 onwards) | |
| 2 | 58104-2000 | Seat Lid & Hinges (Soft Close - 2018 onwards) | |
| 3 | J15-230 | 29098-1000 | Hinge Set (Standard Compact) |
| 3 | J15-231 | 29098-2000 | Hinge Set (Large - pre 2011) |
| 3 | 58105-1000 | Hinge Set (Large - 2018 onwards) | |
| 3 | 58105-2000 | Hinge Set (Soft Close - 2018 onwards) | |
| 4 | 29035-1000 | Hose (Standard Compact) | |
| 4 | 29035-1001 | Hose (Large) | |
| 5 & 6 | J15-233 | 58107-1000 | Intake seal & Intake Elbow |
| 7 | J15-234 | 29041-1000 | Base, Plug & O-ring Assembly |
| 8 | J15-246 | 29028-2000 | Plug & O-ring Assembly (From 2003 - bayonet) |
| 9 | O-ring (Plug) | ||
| 10 | J15-236 | O-ring (Bowl) | |
| 11 | Stainless Steel Bolt | ||
| 12 | Stainless Steel Nut | ||
| 13 | Stainless Steel Washer | ||
| 14 | Nylon Washer | ||
| 15 | Cap | ||
| 16 | J15-237 | 29043-0000 | Base Valve Gasket |
| 17 | Handle | ||
| 18 | J15-204 | 29044-3000 | Seal Housing Assembly (From 2008) |
| 19 | Top Valve Seat | ||
| 20 | Cam | ||

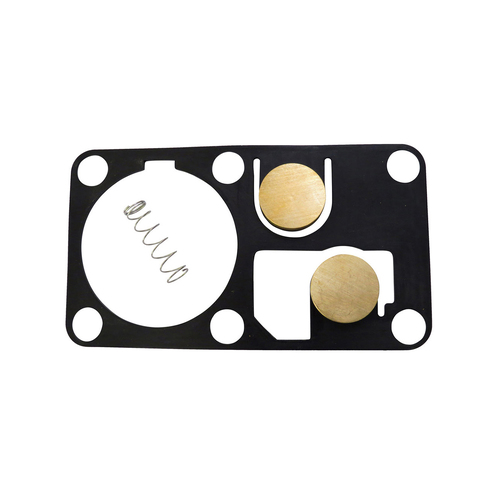

| 21 | J15-240 | 29042-000 | Top Valve Gasket |
| 22 | Flush Lever O-ring | ||
| 23 | Flush Control Lever | ||
| 24 | Flush Lever Screw | ||
| 25 | Buffer | ||
| 26 | Valve Cover Screw | ||
| 27 | Valve Cover | ||
| 28 | Pump Cylinder | ||
| 29 | J15-241 | 29046-3000 | Piston, Rod & O-ring Assembly |
| 30 | J15-242 | 29017-1000 | Piston O-ring |
| 31 | Pump Cylinder Screw | ||
| 32 | J15-243 | 29091-1000 | Discharge Flange |
| 33 | J15-244 | 29092-1000 | Joker Valve |
| 34 | J15-245 | 29029-1000 | Discharge Elbow |
| 35 | Valve Spring |
| Kit | Part No. | Jabsco Code | Description | Items included |
|---|---|---|---|---|
| A | J15-202 | 29045-3000 | Major Service Kit | 15, 16, 18, 19, 21 , 22, 24, 25, 26, 30, 31, 33, 35 |
| B | J15-205 | 29040-3000 | Complete Pump Unit | 16, 17, 18 to 35 |
| C | J15-208 | 29094-3000 | Valve Cover Assembly | 17, 18, 19, 20, 22, 23, 24, 26, 27, 35 |
| D | J15-209 | 29051-2000 | Pump Cylinder Assembly | 16, 19, 26, 28, 31, 32, 33, 34, 35 |
| E | J15-210 | 29047-0000 | Bowl Hardware Kit | 10, 11, 12, 13, 14, 15 |
