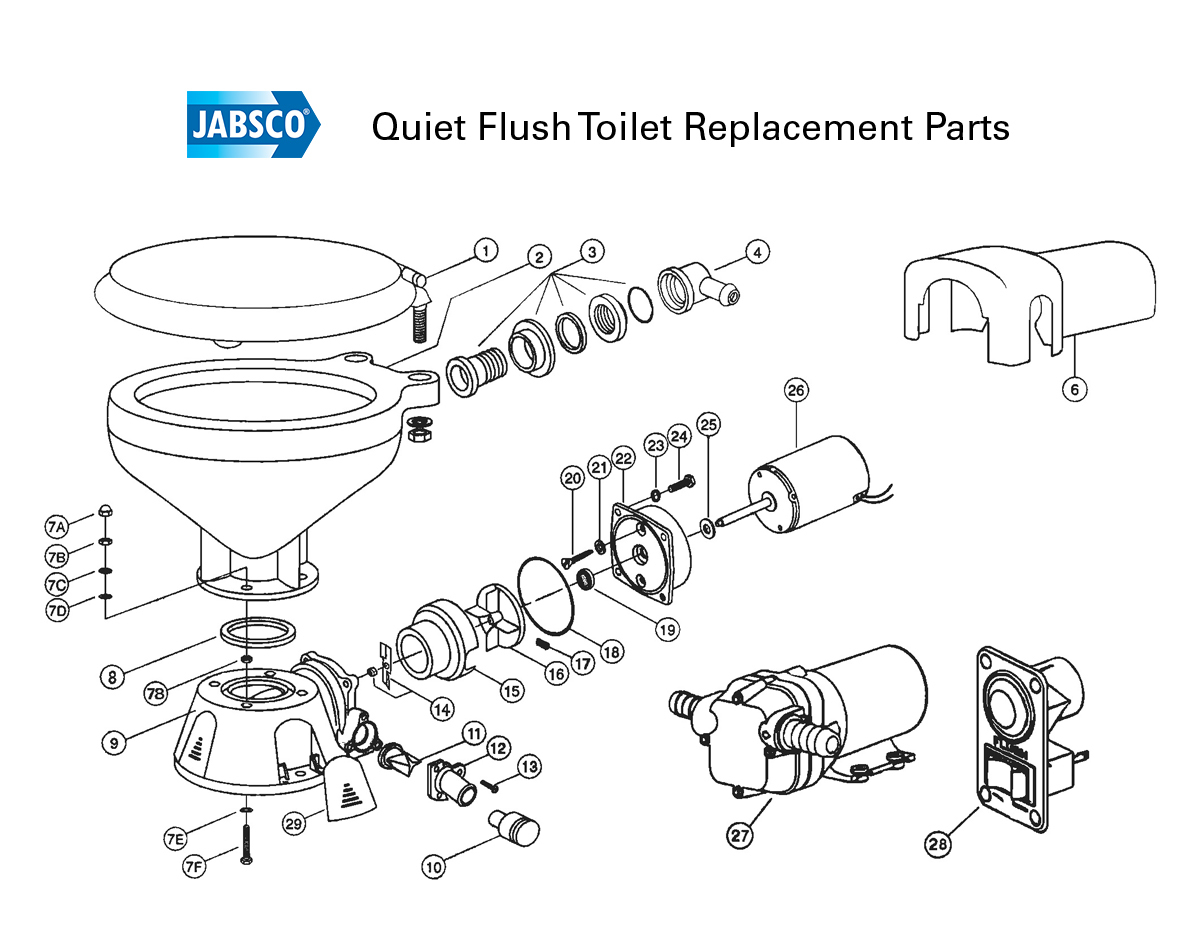

Exploded Diagram
This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
See product overview tab for table with links.
This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
Click on the JPW part numbers below to be directed to the product listing on our website for stock availability, pricing and to order online.
Some items are also included in the "Repair Kits" which are listed further below.
Note: If the item you need has no JPW part number, please contact us so we can confirm if we can bring it in specially for you.
| Item | Part No | Jabsco Code | Description |
|---|---|---|---|
| 1 | J15-225 | 29097-1000 | Seat, Lid & Hinges (Standard Compact) |
| 1 | J15-226 | 29127-1000 | Seat, Lid & Hinges (Large) |
| 1 | J16-422 | 29127-0003 | Seat, Lid & Hinges (Standard Soft Close) |
| 2 | J15-220 | 29096-0000 | Bowl (Standard Compact) |
| 2 | J15-221 | 29126-0000 | Bowl (Large) |
| 3 & 4 | J15-233 | 58107-1000 | Intake seal & Intake Elbow |
| 6 | J16-317 | 43990-0051 | Motor Cover |
| 7 | J16-316 | 18753-0637 | Bowl Install Harware Kit includes: Philips Head Screw (A), Starlock Washer (B), Hex Nut (C), Plastic Washer (D), Stainless Washer (E), Plastic Nut Cap (F) |
| 8 | J16-318 | 37017-0000 | Bowl Gasket (old style) |
| 8 | J15-236 | 44101-1000 | Bowl Gasket (new style) |
| 9 | J16-222 | 37004-1000 | Base Assembly (Kit B) |
| 10 | J16-315 | 98023-0080 | Hose Adapter 38mm |
| 11 | J16-312 | 44106-1000 | Joker Valve |
| 12 | J16-314 | 44107-1000 | Discharge Port 25mm |
| 13 | 96050-0568 | Discharge Port Screw | |
| 14 | J16-330 | 37056-1000 | Chopper Plate & Lock Nut |
| 15 | J16-320 | 37014-0000 | Macerator Housing |
| 16 | J16-321 | 37006-0000 | Centrifugal Impeller |
| 17 | J16-322 | 91084-0320 | Set Screw |
| 18 | J16-323 | 43990-0066 | "O" Ring |
| 19 | J16-311 | 1040-000 | Seal & Retainer |
| 20 | 91010-0144 | Screw | |
| 21 | J16-327 | 35445-0000 | Washer (plastic) |
| 22 | J16-355 | 37043-1000 | Seal Housing |
| 23 | Lock Washer | ||
| 24 | J16-329 | 91027-0011 | Screw |
| 25 | J16-313 | 6342-000 | Slinger |
| 26 | J16-212 | 18753-0554 | Motor 12V |
| 26 | J16-213 | 18753-0555 | Motor 24V |
| 27 | J16-215 | 31631-1092 | Salt Water Intake Pump 12V |
| 27 | J16-216 | 31631-1094 | Salt Water Intake Pump 24V |
| 27 | J16-217 | 31331-0092 | Salt Water Intake Pump 12V (after 2018) |
| 27 | J16-218 | 31331-0094 | Salt Water Intake Pump 24V (after 2018) |
| 28 | J16-202 | 37047-1000 | Switch Panel |
| 29 | J16-356 | 37003-1000 | Screw Cover kit (pack of 2) |
| Kit | Part No. | Jabsco Code | Description | Items included |
|---|---|---|---|---|
| A | J16-220 | 90197-000 | Service Kit | 11, 18, 19, 21 |
| B | J16-222 | 37004-1000 | Base & Elbow kit | 7, 9, 11, 12, 13 |
| C | J16-227 | 37072-0092 | 12V Motor & Macerator Assembly | 6, 14 - 26 |
| C | J16-228 | 37072-0094 | 24V Motor & Macerator Assembly | 6, 14 - 26 |
