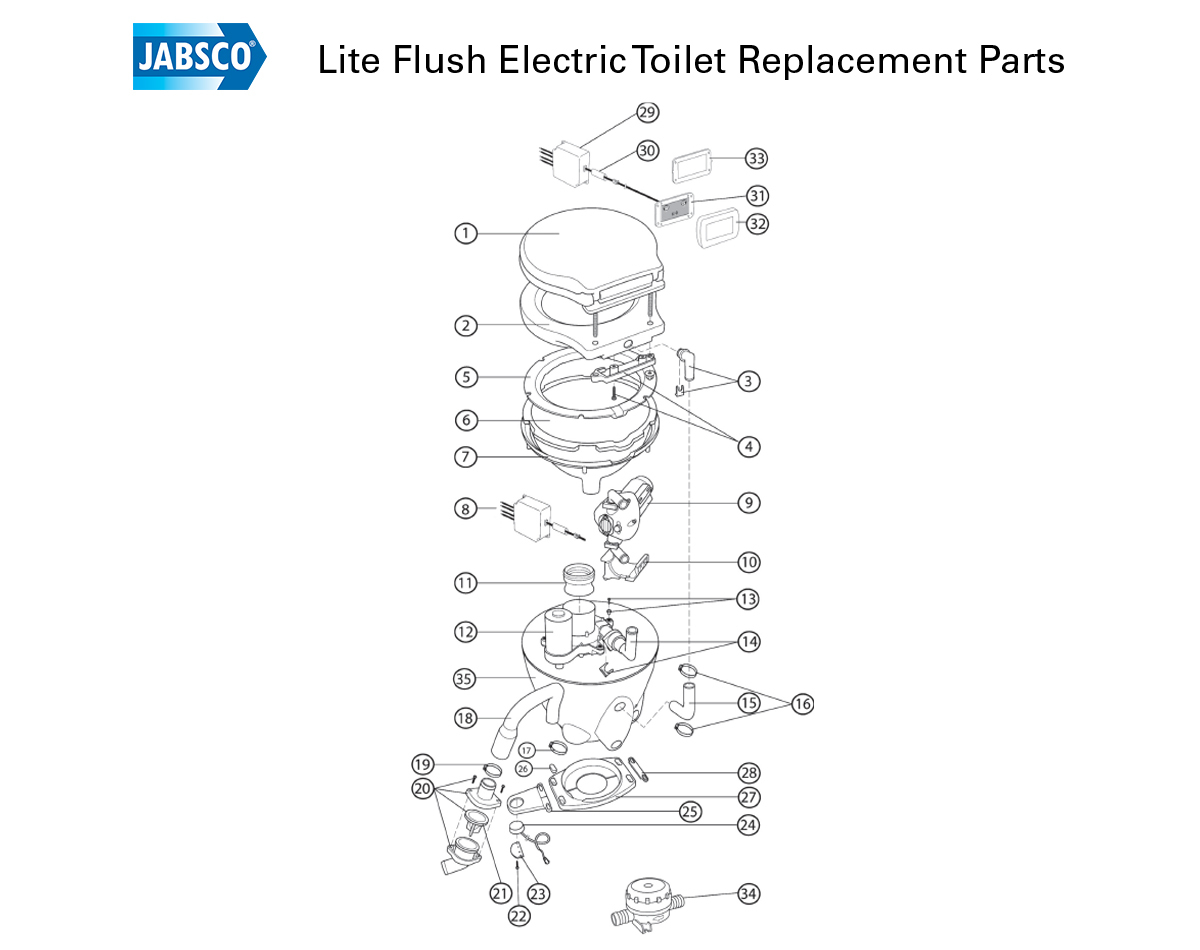

This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
See product overview tab for table with links.
This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
See product overview tab for table with links.
This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
Click on the JPW part numbers below to be directed to the product listing on our website for stock availability, pricing and to order online.
Some items are also included in the "Repair Kits" which are listed further below.
Note: If the item you need has no JPW part number, please contact us so we can confirm if we can bring it in specially for you.
Item | Part No | Jabsco Code | Description |
---|---|---|---|
1 | J16-436 | 58530-1000b | Seat & Lid |
2 | Top | ||
3 | Intake Elbow & Clip | ||
4 | Seat & Lid Clamp Kit | ||
5 | J16-437 | 58514-1000 | Top Bowl Seal |
6 | Ceramic Bowl | ||
7 | Clamp Ring | ||
8 | Control Box (Footswitch) | ||
9 | J16-217 | 31331-0092 | Rinse Pump 12V |
9 | J16-218 | 31331-0094 | Rinse Pump 24V |
10 | Rinse Pump Bracket | ||
11 | Bowl Outlet Seal | ||
12 | Pump Assembly 12V | ||
12 | Pump Assembly 24V | ||
13 | Pump Assembly Fixings | ||
14 | Discharge Elbow & Clip | ||
15 | Inlet Hose | ||
16 | Small Hose Clip | ||
17 | Medium Hose Clip | ||
18 | Outlet Hose | ||
19 | Large Hose Clip | ||
20 | J16-419 | 58109-1000 | Non-Return Valve Assembly |
21 | J15-244 | 29092-1000 | Joker Valve |
22 | Screw (Footswitch) | ||
23 | Switch Support | ||
24 | Footswitch | ||
25 | Switch Mount | ||
26 | Screw Covers | ||
27 | Base | ||
28 | Foot Panel Blank | ||
29 | Control Box | ||
30 | Heat Shrink Sleeve | ||
31 | Panel | ||
32 | Jabsco White Fascia Panel | ||
33 | Adaptor Plate | ||
34 | J21-112 | 46400-0000 | Pumpguard |
35 | Outer Bowl |
Kit | Part No. | Jabsco Code | Description | Items included |
---|---|---|---|---|
A | J16-430 | 58550-1000 | Hose Kit | 15, 18 |
B | J16-431 | 58540-1012 | Pump Assembly Kit 12V | 11-14 |
B | J16-432 | 58540-1024 | Pump Assembly Kit 24V | 11-14 |
C | J16-433 | 58555-1000 | Control Kit (Footswitch) | 8, 24, 28 |
D | J16-434 | 58552-1000 | Control Kit (Control Panel) | 28-33 |
E | J16-435 | 58541-1000 | Pulley & Belt Kit | Small and large pulley, belt and clip |
F | J16-438 | 58542-1000 | Belt Kit | belt and clip |
$101.00 (inc. GST)
Replacement Non-Return Valve Kit Compact for Jabsco Toilets 58109-1000 J16-419 58109-1000
