Exploded Diagram
This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
See product overview tab for table with links.
This listing is to help direct you to all the spare parts available online, as per the exploded diagram shown here.
Click on the JPW part numbers below to be directed to the product listing on our website for stock availability, pricing and to order online.
Some items are also included in the "Repair Kits" which are listed further below.
Note: If the item you need has no JPW part number, please contact us so we can confirm if we can bring it in specially for you.
| Item | Part No | Jabsco Code | Description |
|---|---|---|---|
| 1 | J16-412 | 58104-1000 | Seat & Lid Deluxe Flush (Standard) |
| 1 | J16-414 | 58104-2000 | Seat & Lid Deluxe Flush (Soft Close) |
| 2 | J16-413 | 58105-1000 | Hinge Kit to suit Deluxe Flush Toilet |
| 3 | J15-233 | 58107-1000 | Intake Seal and Elbow Kit |
| 4 | Support Strap, Discharge Hose | ||
| 5 | Support Strap, Motor | ||
| 6 | Support Block, Motor | ||
| 7 | J16-417 | 58048-1000 | Bowl (Compact Angled Back) |
| 7 | J16-418 | 58068-1000 | Bowl (Compact Vertical Back) |
| 7 | J16-415 | 58028-1000 | Bowl (Household Angled Back) |
| 7 | J16-416 | 58038-1000 | Bowl (Household Vertical Back) |
| 8 | Hose Clip (Large) | ||
| 9 | Inlet Hose, Flush Pump | ||
| 10 | Hose Clip (Medium) | ||
| 11 | Screw (Long) | ||
| 12 | Screw (Short) | ||
| 13 | Nut | ||
| 14 | Upper Pump Body | ||
| 15 | Ring Seal | ||
| 16 | Nut | ||
| 17 | Washer | ||
| 18 | Impeller | ||
| 19 | Ceramic Seal | ||
| 20 | Lower Pump Body | ||
| 21 | Motor 12V | ||
| 21 | Motor 124V | ||
| 22 | Outlet Hose, Pump | ||
| 23 | Clip (Small) | ||

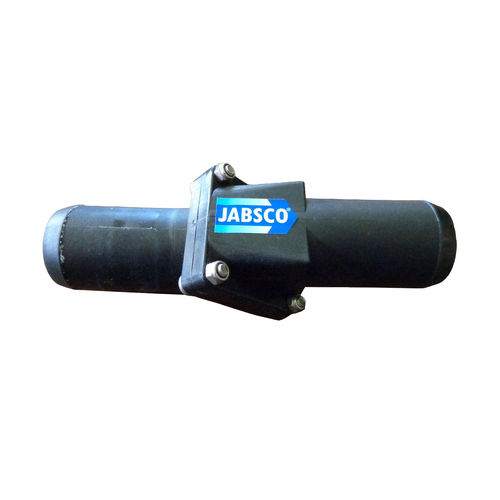

| 24 | J16-419 | 58109-1000 | Non-Return Valve (Compact) |
| 24 | J31-124 | 29295-1010 | Non-Return Valve (Household) |
| 25 | J15-244 | 29092-1000 | Joker Valve |
| 26 | Control Box Electronics | ||
| 27 | Control Cable Heat Shrink Sleeve | ||
| 28 | Panel | ||
| 29 | Jabsco White Fascia Panel | ||
| 30 | Adapter Plate | ||
| 31 | J16-200 | 37038-1012 | Solenoid Valve 12V |
| 31 | J16-201 | 37038-1024 | Solenoid Valve 24V |
| 32 | J16-217 | 31331-0092 | Rinse Pump 12V |
| 32 | J16-218 | 31331-0094 | Rinse Pump 24V |
| 33 | J21-114 | 46400-9500 | Pump Guard |
| Kit | Part No. | Jabsco Code | Description | Items included |
|---|---|---|---|---|
| A | J16-400 | 58100-2000 | Major Service Kit | 4-6, 8-13, 15-17, 19, 22, 23 |
| B | J16-406 | 58103-1012 | Pump Assembly 12V | 4-6, 8-23 |
| B | J16-407 | 58103-1024 | Pump Assembly 24V | 4-6, 8-23 |
| C | J16-411 | 58029-1000 | Control Kit | 26-30 |
