From $1,905.28 (inc. GST)
Bennett Marine Sport Hydraulic Trim Tab Complete System with Electric Indicator Control
The M80 and M120 Sport tabs are ideal for boats with limited transom space and the unique batwing design provides 30% more lift than conventional trim tabs.
This complete system includes trim tab planes, hydraulic actuators and power unit with an Integrated Helm Control.
The M80 and M120 Sport tabs are ideal for boats with limited transom space. The unique batwing design provides 30% more lift than conventional trim tabs.
Hydraulic trim tabs are known for power, precision and durability. Get the most from your boat, no matter what the load, speed or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride and get on plane faster.
Balance loads, plane faster, increase efficiency and performance with Bennett hydraulic trim tabs – known for power, precision, and durability.
Kit contains:
*See related products for complete Sport kits with other controls.
The Integrated Helm Control (OBI) is an attractive and user-friendly, stand-alone helm control engineered for ease of installation, without the need for an external control unit. The functionality and “brains” of the control unit are engineered directly into a single, space-saving, and simple-to-install keypad.
Features:
JPW SKU | Kit Type | Trim Tab Size (Span x Chord) |
Actuator | Recommended Boat Size |
---|---|---|---|---|
JPW16208 | M80OBI | 8" x 10" (203 x 254mm) |
Single | 5 - 6m |
JPW16216 | M120OBI | 10" x 12" (254 x 305mm) |
Single | 6 - 7m |
How Trim Tabs Work:

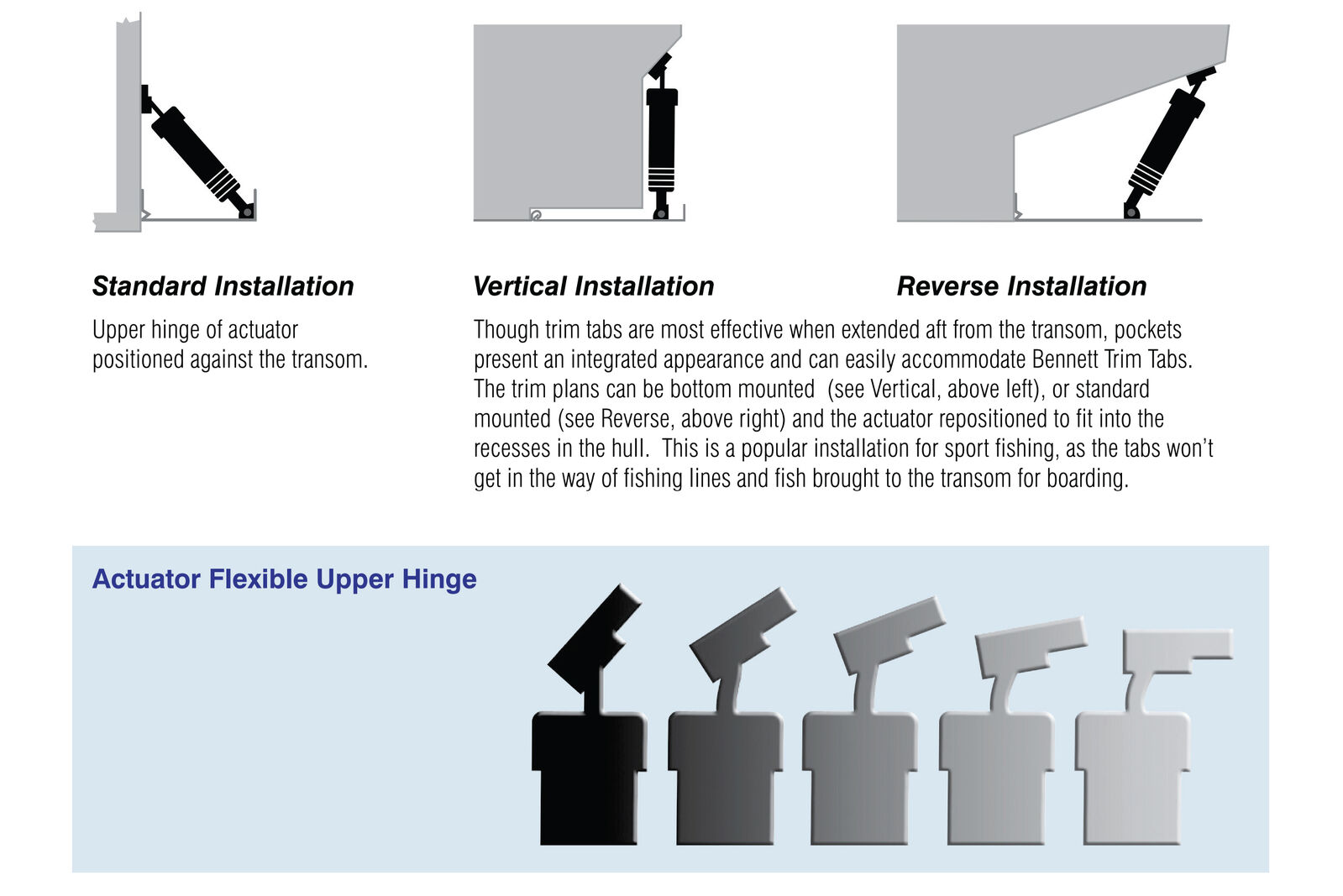

Bennett trim tabs most often attach to the bottom edge of the transom (although other mounting variations are available). When the helm control is pressed, the trim tabs move up or down. Water-force on the trim tab creates an upward pressure, raising the stern and lowering the bow. Properly sized trim tabs improve the performance of your boat in a wide range of weight, weather and water conditions.
In general, trim tabs operate in reverse of what you may think. The port (left) button controls the starboard (right) tab. Conversely, the starboard (right) button controls the port (left) tab. The helm control is wired so that all you have to do is press the control in the direction you want the bow to move. Don’t worry about which trim tab is moving. The proper use of Bennett Trim Tabs becomes second nature after a short time.
All installation and owner manuals are now provided in digital format. You can find these under the "Downloads" tab or via the Bennett Marine website: BennettTrimTabs.com/Install
